Humidity and Temperature Transmitter

Your climate’s silent narrator. Our humidity & temperature transmitter captures every moisture murmur and thermal beat, translating them into real-time environmental intelligence

Why Choose ADYAA'S Humidity and Temperature Transmitter?

Accuracy:

Delivers industry-leading precision for critical measurements and custody transfer applications.

Reliability:

Engineered for robust performance in the harshest industrial environments with minimal maintenance.

Diagnostics:

Features smart technology for self-monitoring and seamless integration into digital control systems.

Humidity and Temperature Transmitter

Turn unseen moisture and warmth into clarity—our humidity & temperature transmitter decodes every droplet and degree for unparalleled climate mastery

EE07

Interchangeable humidity & temperature probe, range 0–100 % RH, temperature
–40…+80 °C
Accuracy: ±2 % RH (0–90 %), ±3 % RH (90–100 %); temp ±0.1 °C at 20 °C
IP65 housing with protective sensor coating; compact with M12 connector
Output: Digital E2 interface; powered by 3.8–5.5 V DC

EE08

Miniature humidity & temperature probe, range 0–100 % RH, temperature –40…+80°C
Accuracy: ±2 % RH (0–90 %), ±3 % RH (90–100 %); temp ±0.2 °C
Compact IP65 housing with protective coating; cable or M12 connector
Outputs: Analog 0–1 / 2.5 / 5 / 10 V or digital E2; powered by 4.5–30 V DC

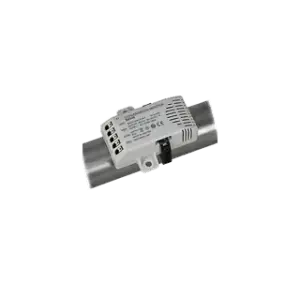

EE046

Wall / pipe / snap-on condensation monitor, range 10–100 % RH
Output: potential-free changeover relay, 24 V AC/DC, 1 A
Contact functions: WET (RH > threshold, NC, power off) / DRY (RH < threshold, NO,
power on)
Protected RH sensor, compact IP40 housing, easy installation

EE060

Compact humidity & temperature probe, range 0–100 % RH, temperature –40…+60 °C (option up to +80 °C)
Accuracy: ±2.5 % RH, ±0.3 °C
IP65 polycarbonate housing with protective sensor coating
Outputs: 0–1 V / 0–5 V / 0–10 V analog; optional passive T-output; powered by
3.6–30 V DC

EE072

Digital humidity & temperature probe, range 0–100 % RH, temperature –40…+80 °C
High-accuracy RH & T; calculates dew point, frost point, wet-bulb, mixing ratio,
enthalpy
IP65 stainless steel or polycarbonate housing with protective coating, M12 connector
Outputs: RS485 Modbus RTU or CANopen; powered by 24 V AC/DC

EE99-1

High-precision humidity & temperature module, range 0–100 % RH, temperature
–50…+180 °C
Accuracy: ±1.3 % RH (0–90 % RH), ±2.3 % RH (90–100 % RH); temperature
±0.15 °C
IP65 housing with stainless steel grid filter; field-adjustable via PCB push buttons
Outputs: 4–20 mA (3-wire) for RH; passive Pt100/Pt1000 for temperature; powered
by 10–35 V DC or 10–28 V AC

EE150

Wall / duct-mount humidity & temperature transmitter, range 0–100 % RH and
−5…+55 °C
Accuracy: ±3 % RH (30–70 %), ±5 % outside; temp ±0.3 °C
IP65 / NEMA 4X housing with stainless steel probe and PTFE filter
Outputs: 0–10 V or 4–20 mA, powered by 24 V AC/DC

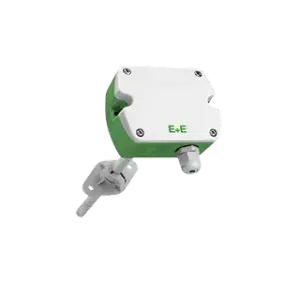

EE160

Wall / duct-mount humidity & amp; temperature transmitter, range 0–100 % RH and –40…+60 °C
Accuracy: ±2 % RH at 23 °C; ±2.5 % (0…40 °C); ±3.5 % (–20…60 °C); temperature
factory cal. ±0.1 °C
IP65 / NEMA 4X housing with stainless steel probe and protective membrane filter
Outputs: 0–10 V or 4–20 mA; RS485 Modbus RTU / BACnet MS/TP; powered by 24V AC/DC

EE210

Wall, duct & remote-probe humidity & temperature transmitter, range 0–100 % RH and –40…+60 °C
Accuracy: ±1.3 % RH (typ. at –15…+40 °C, ≤ 90 % RH); ±2.3 % RH (> 90 %); temp
accuracy ±0.2 °C
IP65 / NEMA 4X housing with coated sensor, resistant to condensation and pollution
Outputs: 0–10 V, 4–20 mA, RS485 Modbus RTU / BACnet MS/TP; optional display;
powered by 24 V AC/DC

EE211

Heated humidity & temperature transmitter, range 0–100 % RH, suitable for condensing environments
Accuracy: high‑precision RH & temperature; calculates dew point, absolute humidity,
wet-bulb, enthalpy, and more
IP65 / NEMA 4X housing with coated sensor, interchangeable T‑probe, optional display
Outputs: 0–10 V / 4–20 mA analog, RS485 Modbus RTU; powered by 24 V AC/DC

EE212

Modular humidity & temperature transmitter, range 0–100 % RH, temperature –40…+60 °C
High-precision RH & temperature; calculates dew point, absolute humidity, mixing ratio, enthalpy
IP65 / NEMA 4X housing with coated sensor; replaceable sensing module
Outputs: 0–10 V / 4–20 mA analog, RS485 Modbus RTU; powered by 24 V AC/DC

EE260

Heated humidity & temperature probe, range 0–100 % RH, temperature –60…+60 °C
Accuracy: ±1.3 % RH (0–90 % RH), ±2.0 % RH (90–100 % RH); temperature ±0.15 °C
IP67 UV- and heat-resistant elastomer housing; dual heating system prevents
condensation
Outputs: Two configurable voltage outputs; RS485 Modbus RTU; powered by 24 V AC/DC

EE431

Temperature sensor for ducts and immersion applications, measuring –40…+150 °C
High accuracy: ±0.2 °C across –50…+150 °C
Robust IP65 / NEMA 4X housing; supports flange or immersion well mounting
Offers both active (0–10 V / 4–20 mA) and passive outputs (Pt100/Pt1000, NTC10k, Ni1000); powered by 15–35 V DC or 24 V AC

EE451

Wall-mounted temperature sensor for indoor/outdoor use, measuring –40…+70 °C
High accuracy: ±0.3 °C (0–70 °C); optional display version ±0.1 °C
IP65 / NEMA 4X polycarbonate housing with easy installation via mounting holes and bayonet screws
Outputs: Active (0–10 V / 4–20 mA), digital RS485 Modbus RTU, or passive (Pt1000, NTC10k, Ni1000); powered by 24 V AC/DC

EE461

Cable temperature sensor for HVAC and industrial process applications, measuring –30 °C to +105 °C
High-accuracy sensing with Pt100, Pt1000, Ni1000, or NTC10k elements
IP67 / NEMA 4 stainless steel sleeve with star-pressed design for durability
Available in 2-wire or 4-wire versions; cable lengths up to 10 m; product details printed on the cable

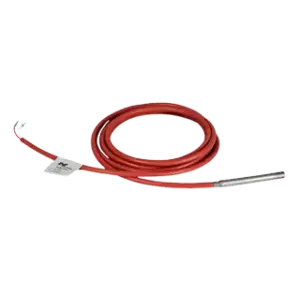

EE462

High-temperature cable sensor, range 0 °C to +350 °C (glass fibre) or –60 °C to +180 °C (silicone)
Durable stainless steel sleeve with star-pressed design for chemical and mechanical resistance
IP67 / NEMA 4 protection; product details printed on the cable
2-wire connection; supports Pt100, Pt1000, Ni1000, or NTC10k elements

EE650

Air velocity transmitter for HVAC, range 0–10 / 15 / 20 m/s (user-selectable)
Accuracy: ±(0.2 m/s + 3 % of measured value) at 20 °C
IP65 / NEMA 4X housing with robust VTQ thin-film sensor, resistant to pollution
Outputs: 0–10 V / 4–20 mA, RS485 Modbus RTU / BACnet MS/TP; powered by 24 V AC/DC

HTP201

Humidity & temperature probe, range 0–100 % RH, temperature –40…+80 °C
Accuracy: ±2.5 % RH (0–40 °C), ±3 % RH (0–40 °C), ±4 % RH (–20…80 °C), ±5 % RH (–40…–20 °C); temperature accuracy as per datasheet
IP65 stainless steel or polycarbonate housing with encapsulated electronics
Outputs: 0–1 / 5 / 10 V analog or 4–20 mA; optional passive temperature output; powered by 9–28 V DC

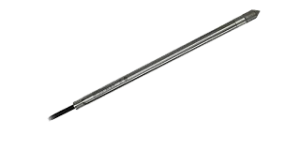

HTP501

Digital humidity & temperature probe, range 0–100 % RH, temperature –40…+120 °C
Accuracy: ±1.8 % RH (0–90 %), ±2.5 % RH (90–100 %); temperature ±0.15 °C
IP66 stainless steel housing with protected electronics
Outputs: RS485 Modbus RTU; powered by 24 V AC/DC; calculates dew point, frost point, wet-bulb, mixing ratio, absolute humidity, and enthalpy

Omniport 30

Handheld humidity, temperature & multifunction meter, range 0–100 % RH and 0…+50 °C (operating)
Accuracy: High precision; sensor-dependent (supports up to 23 measurands including dew point, air
velocity, CO₂, pressure, etc.)
IP40 housing, ABS plastic body with intelligent interchangeable probes
Outputs: USB data transfer, powered by 4× AA batteries or 5 V DC via USB

TES201

Wall-mounted temperature transmitter, range –30…+60 °C
Accuracy: ±0.3 °C
IP65 / NEMA 4X housing with stainless steel probe
Outputs: 0–10 V or 4–20 mA; powered by 24 V AC/DC

Key Features

Advanced thin-film capacitive RH sensors with ±2% RH and ±0.2 °C accuracy for precise climate monitoring
Simultaneous measurement of relative humidity and temperature, with calculation of dew point, absolute humidity, and mixing ratio
Models available for wall, duct, remote probe, and compact integration; IP-rated housings for harsh or outdoor environments
Analog (0–10 V, 4–20 mA) and digital (RS485 Modbus RTU, BACnet) outputs for seamless system integration
Proprietary sensor coating resists dust, salt, and chemical contamination, ensuring reliable performance over years
Suitable for extreme conditions, from –40 °C to +180 °C and up to 20 bar pressure in certain industrial-grade models

Industrial Applications

Pharmaceutical & Biotech Manufacturing: Maintains strict GMP compliant climate control for production, storage, and cleanroom environments
HVAC & Building Automation: Optimizes indoor air quality and energy efficiency in commercial, industrial, and institutional facilities
Food & Beverage Processing: Controls humidity and temperature in production lines, cold storage, and packaging to preserve product quality
Agriculture & Greenhouses: Regulates microclimates for optimal crop growth, seed storage, and livestock welfare
Industrial Process Control: Monitors environmental conditions in paper, textile, electronics, and chemical manufacturing to prevent defects
Meteorology & Environmental Monitoring: Provides accurate climate data for weather stations, environmental research, and outdoor industrial sites
