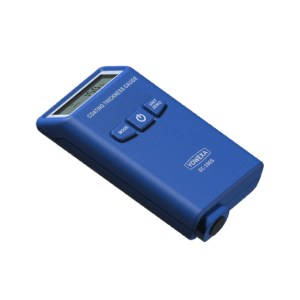

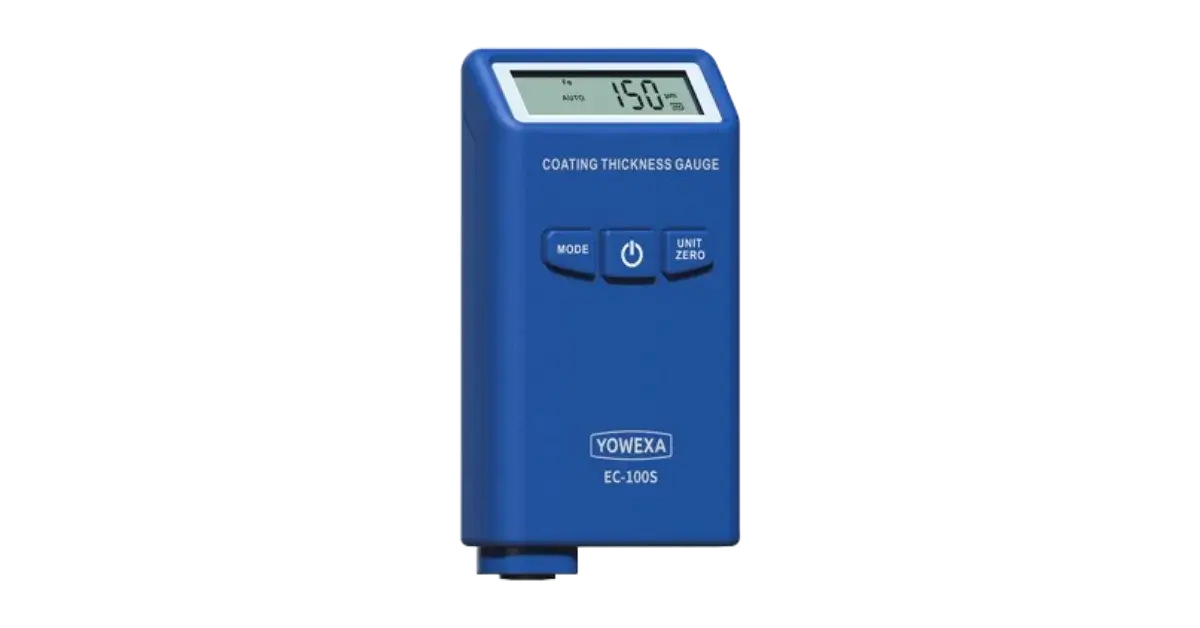

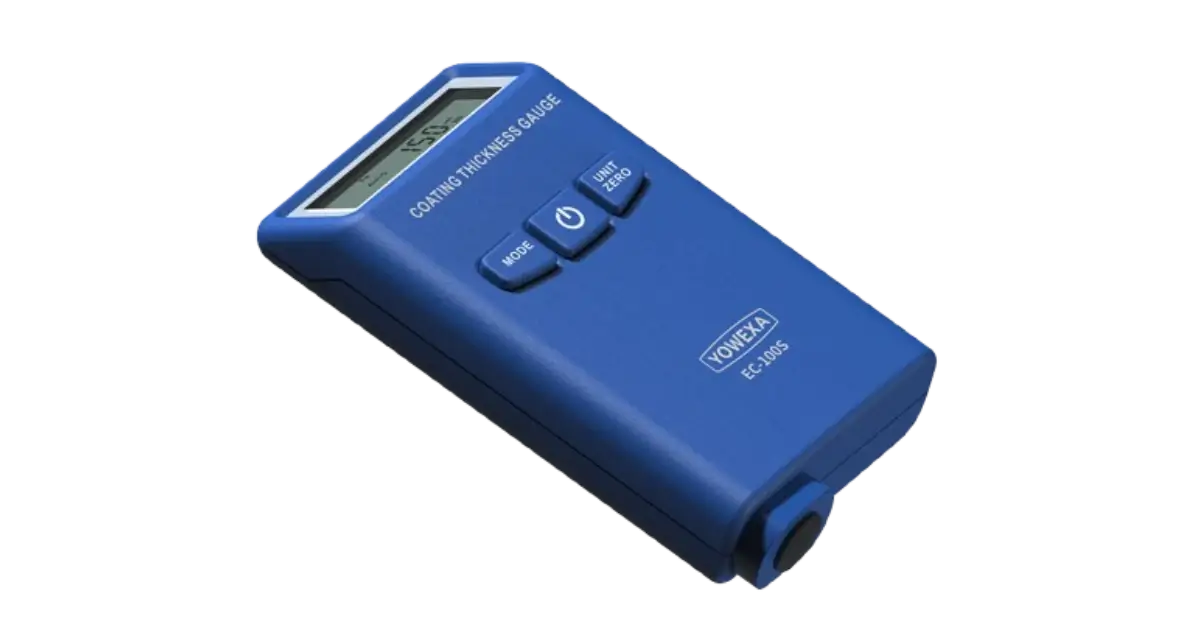

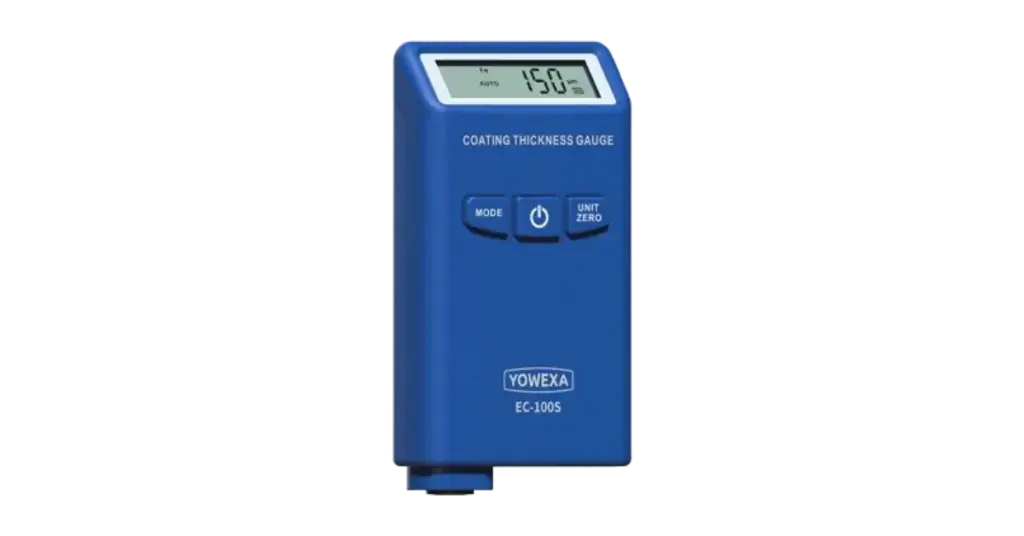

EC100S Coating Thickness Gauge

The EC100S is your go-to solution for fast, reliable, and non-destructive coating thickness measurement. Whether you’re inspecting automotive paint, verifying aerospace coatings, or checking corrosion protection in marine environments, this compact handheld device delivers consistent results with minimal effort.

Designed for professionals who demand accuracy without complexity, the EC100S combines magnetic induction and eddy current technologies to measure coatings on both ferrous and non-ferrous substrates and automatically detecting the material type so you don’t have to.

Why Choose EC100S Coating Thickness Gauge from ADYAA?

Capability

Packs serious power into a compact frame and perfect for tight spaces and big expectations

Reliable

Built to handle tough jobs day in and day out without breaking a sweat.

Efficiency

Gets more done with less fuel, saving time and money without compromising on output

Performance

Smooth, responsive, and ready to deliver top-tier results every time you fire it up

Technical Specifications

Measurement Principle: Magnetic induction and eddy current
Substrate Compatibility: Ferrous (F) and non-ferrous (N) metals
Measurement Range: 0 – 2000 μm
Accuracy: ±(2% of reading + 20 μm)
Resolution:
○ 0.1 μm (0–99.9 μm)
○ 1 μm (100–1250 μm)
Display: High contrast LCD with backlight
Calibration: Zero and two-point with foil standards
Operating Temperature: -0 °C to +50 °C
Storage Temperature: -20 °C to +60 °C

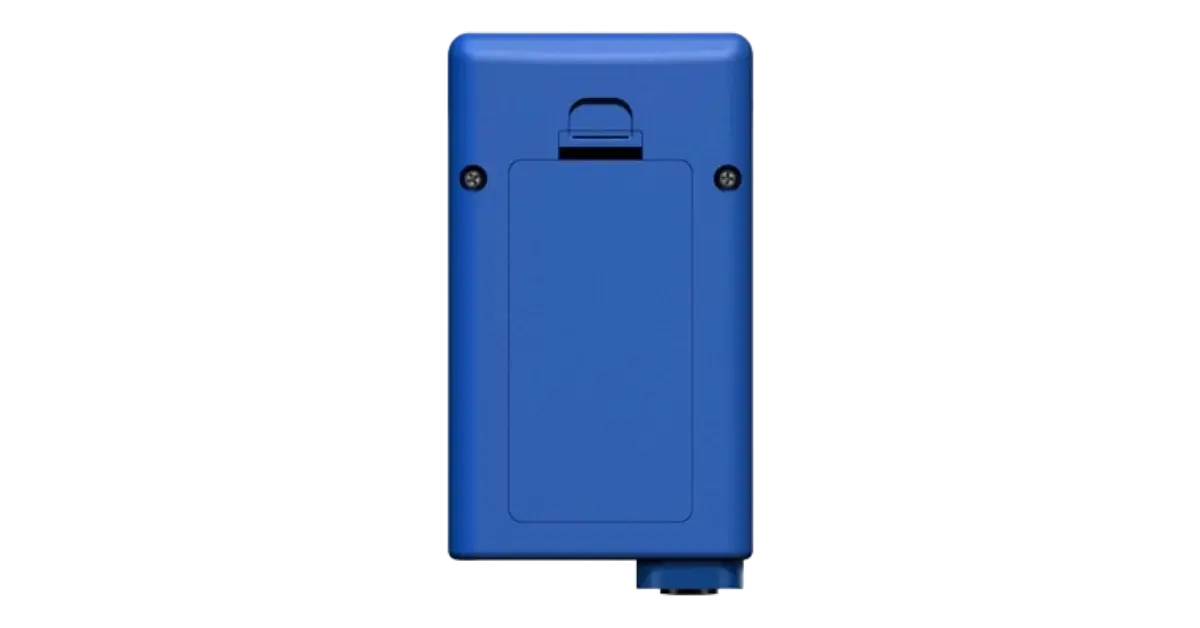

Power Supply: Standard AAA batteries

Key Features

Dual-Mode Measurement: Supports coating thickness evaluation on ferrous and non-ferrous substrates without manual adjustment.
Auto Substrate Detection: No manual toggling—just place and measure.
High-Contrast LCD: Backlit display ensures readability in any lighting condition.
Precision Calibration: Zero and two-point calibration with foil standards for dependable accuracy.
Wide Measurement Range: From ultra-thin coatings to industrial-grade layers (0–2000 μm).
Ergonomic & Portable: Lightweight, battery-powered design ideal for field inspections.
User-Friendly Interface: Minimal training required—just power on and go.

Industrial Applications

Automotive – Paint thickness checks on body panels and parts.
Aerospace – Protective coating verification on aircraft structures.
Marine & Shipbuilding – Anti-corrosion layer inspection on hulls.
Construction – Coating checks on bridges, pipelines, and steel frameworks.
Metal Fabrication – Quality control for plated, painted, or anodized components.
General Manufacturing – Routine inspection for production and maintenance.
