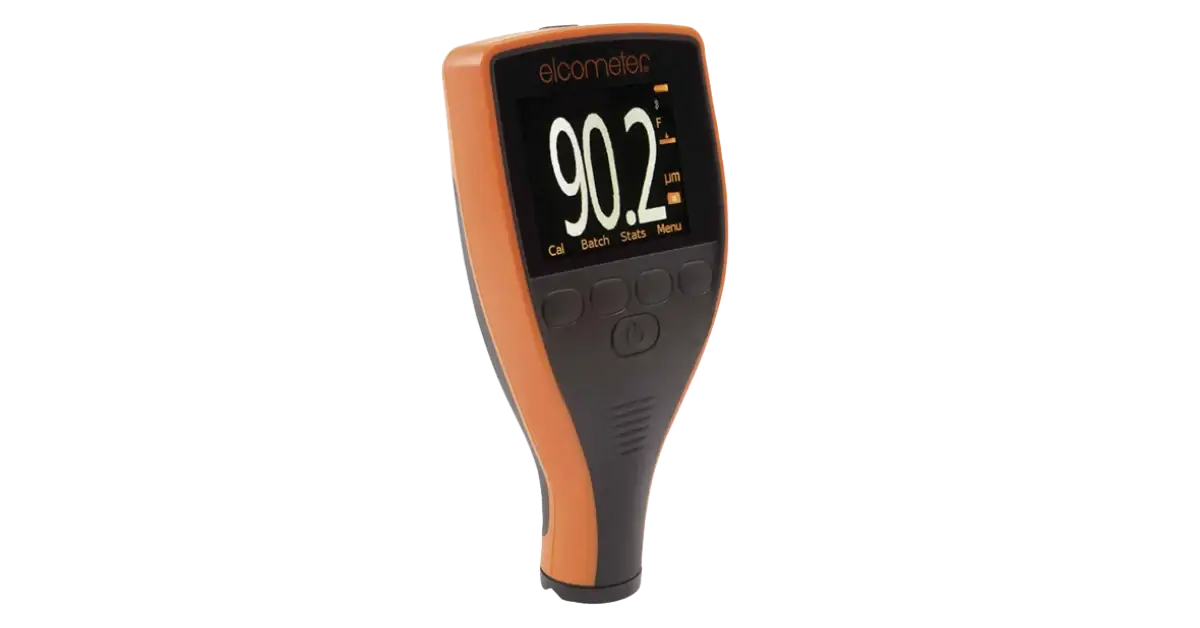

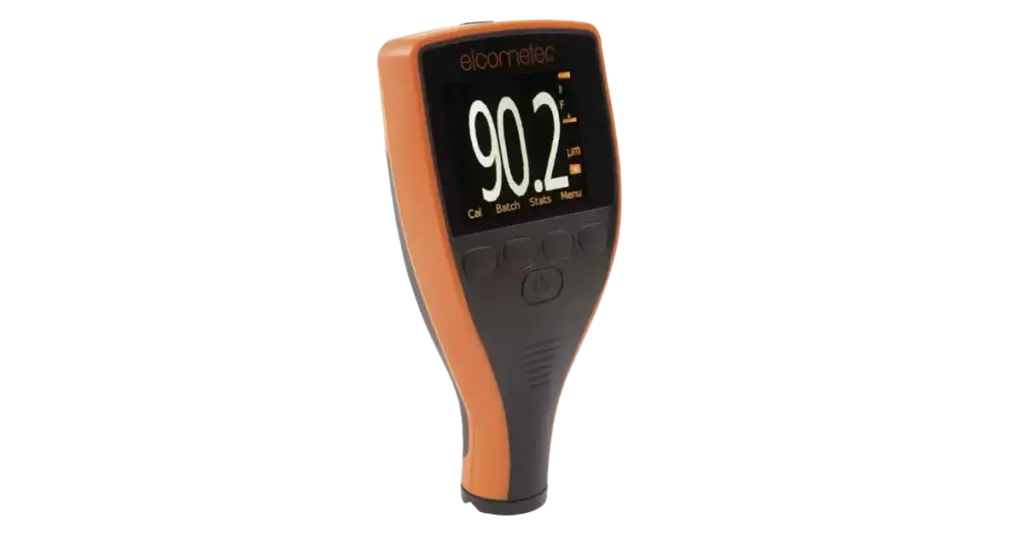

Elcometer 456 Coating Thickness Gauge

The Elcometer 456 is a premium-grade coating thickness gauge designed for fast, accurate, and repeatable measurements on both ferrous and non-ferrous metal substrates. Engineered for professionals across industries, it combines cutting-edge technology with rugged durability and intuitive operation making it a trusted tool for inspection, quality control, and compliance with international standards

Why Choose Elcometer 456 Coating Thickness Gauge from ADYAA?

Capability

Measures coatings on smooth, rough, thin, or curved surfaces with ease and precision

Reliable

Delivers consistent, accurate readings you can count on—no matter the surface or setting

Efficiency

Fast setup, intuitive controls, and up to 140 readings per minute keep inspections moving

Performance

Built tough for industrial use, with Bluetooth and USB connectivity for seamless data handling

Technical Specifications

Measurement Principle: Magnetic induction and eddy current
Substrate Compatibility: Ferrous (F), Non-Ferrous (NF), and Dual (FNF)
Measurement Range: Up to 31 mm (1220 mils) depending on probe
Accuracy: ±1% of measured reading
Resolution: High-resolution readings for thin coatings
Display: Graphical interface and auto rotate high contrast LCD
Calibration: Factory calibrated; user-selectable zero, one-point, and two-point calibration
Operating Temperature: -10 °C to +60 °C
Storage Temperature: -30 °C to +70 °C
Power Supply: Rechargeable battery with USB charging
Memory Capacity: Up to 150,000 readings in 2,500 batches (Model T)
Connectivity: It uses wireless method like USB and Bluetooth for data transfer to PC or mobile devices

Key Features

Multiple model options (Basic, Standard, Top) to suit different inspection needs

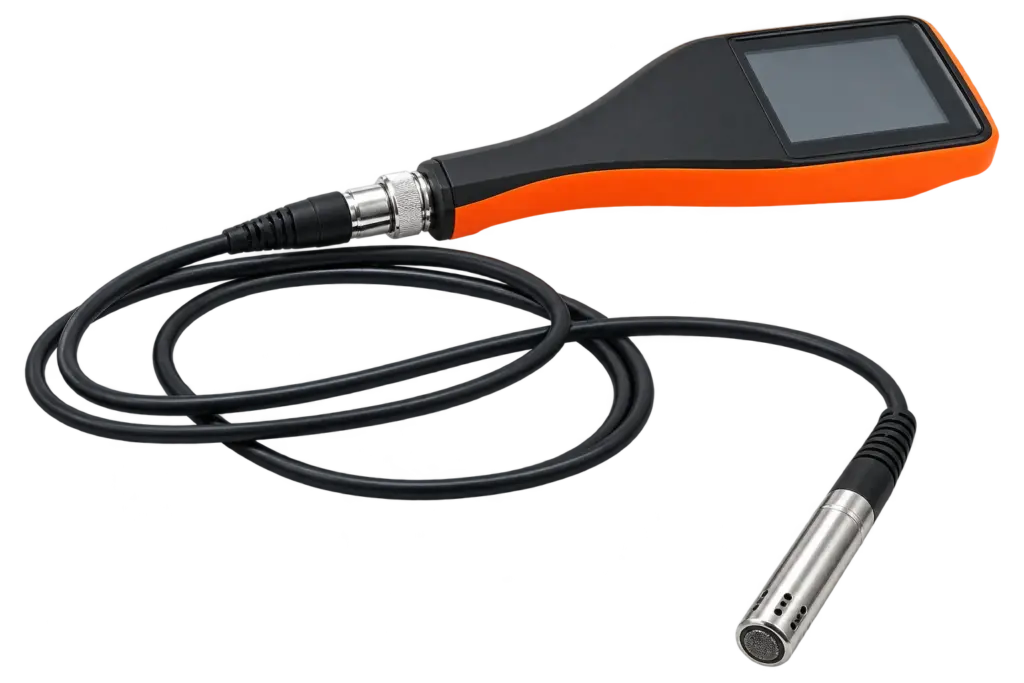

Wide range of interchangeable probes for flexible applications
Scan Mode & Auto Repeat Mode for rapid surface analysis
Live graphical feedback with analogue bar graph and limit indicators
User-friendly interface with large buttons and multilingual menus
Rugged construction—dustproof, waterproof (IP64), and impact-resistant
Traceable test certificates and compliance with global standards

Industrial Applications

Protective Coatings – Inspection of paint, powder, and anti-corrosion layers on steel structures
Automotive & Aerospace – Measurement of coatings on body panels, aircraft fuselage, and components
Marine & Offshore – Evaluation of thick coatings on ship hulls, platforms, and pipelines
Manufacturing & Fabrication – Quality control of anodized, plated, or painted parts
Infrastructure & Civil Engineering – Coating verification on bridges, towers, and industrial assets
Laboratory & R&D – Precision measurement for material testing and development
