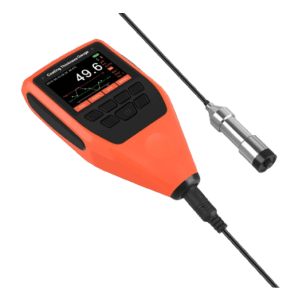

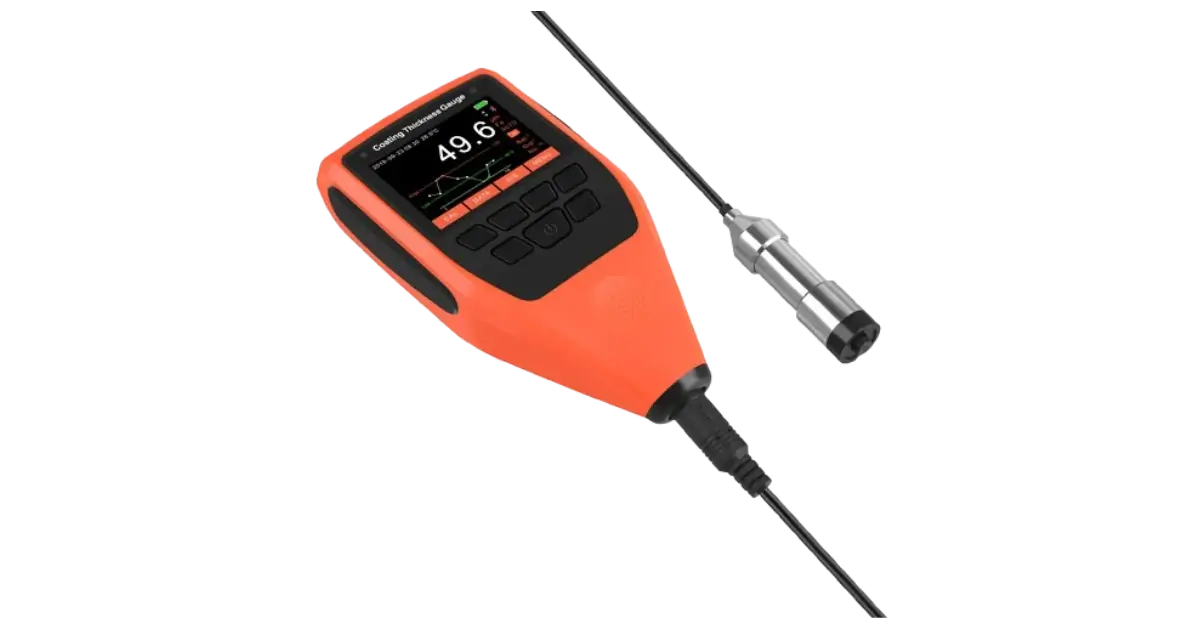

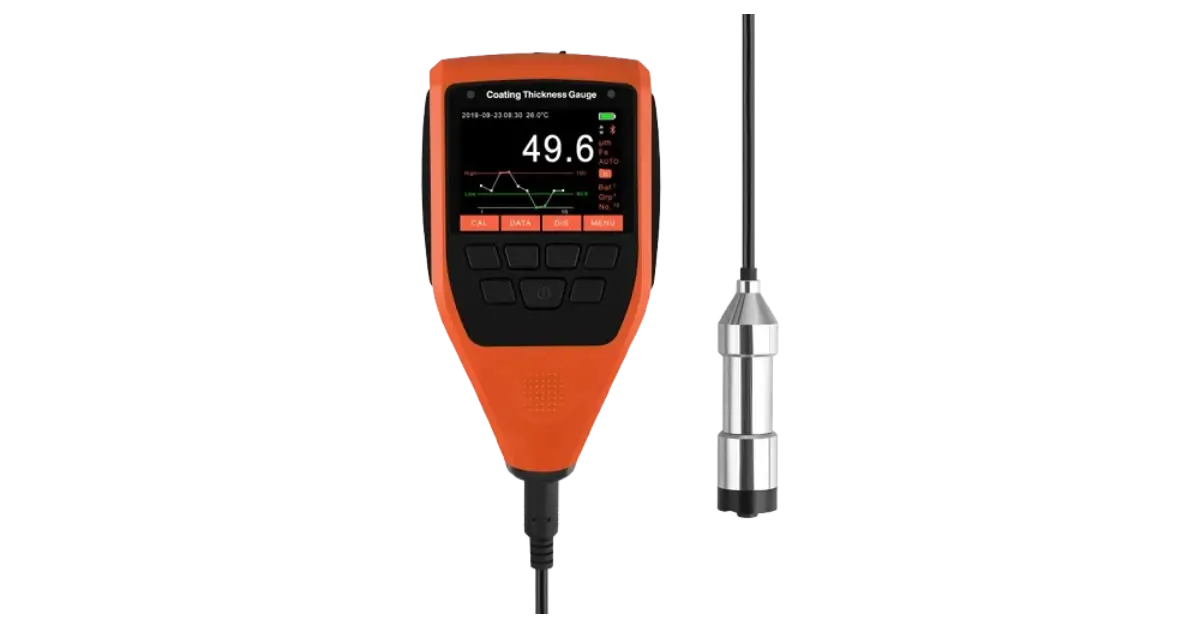

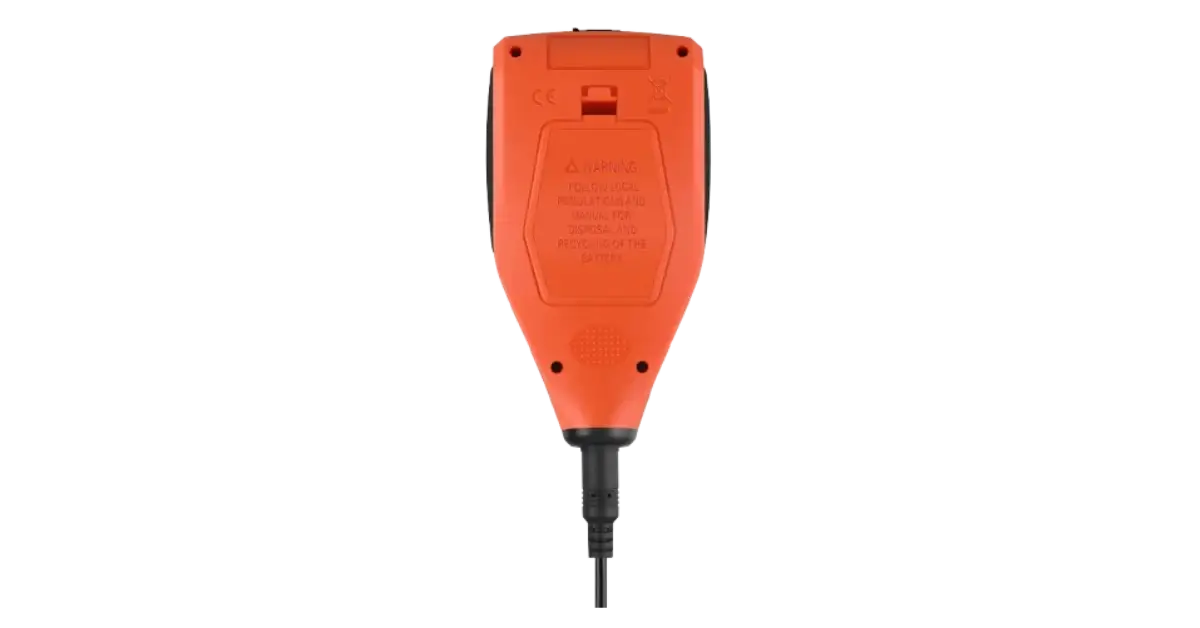

EC777E Coating Thickness Gauge

The EC777E Coating Thickness Gauge is a decoration- grade coating consistence hand drafted for professionals who bear exacting delicacy and trustability across a wide range of substrates. Whether you are examining delicate homestretches or artificial- grade coatings, the EC777E delivers presto, non-destructive measures with exceptional repetition. Its advanced detector technology, intuitive interface, and rugged design make it the go- to result for quality assurance, compliance testing, and conservation in demanding surroundings

Why Choose EC777E Coating Thickness Gauge from ADYAA?

Capability

Designed for real-world conditions, the EC777E delivers consistent, accurate readings you can trust every time

Reliable

Dual technology and external probe options make it versatile enough for everything from automotive paint to industrial coatings

Efficiency

With Bluetooth connectivity and fast data logging, it keeps your workflow smooth and your results traceable

Performance

High-resolution measurements and smart calibration features ensure top-tier precision, even in tight spaces

Technical Specifications

Measurement Principle: Magnetic induction (ferrous) and eddy current (non-ferrous)
Substrate Compatibility: Ferrous and non-ferrous metals
Measurement Range: 0 – 2500 μm
Accuracy: ±(1% of reading + 1 μm)
Resolution: 0.1 μm (0–99.9 μm) and 1 μm (100–2500 μm)
Display: High-resolution color LCD with ambient light sensor
Calibration: Zero, one-point, and multi-point calibration with certified standards
Operating Temperature: -10 °C to +60 °C
Storage Temperature: -30 °C to +70 °C
Power Supply: Rechargeable lithium-polymer battery with USB-C fast charging
Dimensions / Weight: Ergonomic handheld unit with reinforced casing

Key Features

Smart substrate recognition for flawless switching between ferrous and non-ferrous accoutrements
Multi-mode calibration estimation for acclimatized perfection across different operations
Graphical interface with real- time feedback and dimension history
Extended range and ultra-fine resolution andultra-fine resolution for both thin flicks and heavy- duty coatings
Shock-resistant casing designed for artificial and out-of-door use
Long battery life life with quick recharge capability for continued workflow
Data storehouse, export and import via USB and Bluetooth for streamlined reporting
Minimal setup time with guided estimation and intuitive controls

Industrial Applications

Automotive – Inspection ofmulti-layer makeup systems,e-coats, and clear fleeces
Aerospace – Precision dimension of defensive and functional coatings on aircraft factors
Marine & Shipbuilding – Evaluation ofanti-corrosion coatings on shells, balconies, and fitting
Oil & Gas – Monitoring of channel coatings and coastal structural protection
Heavy Industry & Fabrication – Quality control of greasepaint- carpeted, plated, or anodized corridor structure
Infrastructure & Civil Engineering – Coating examination on islands, halls, and sword fabrics
Electronics & Appliances –Surface finish verification on enclosures and factor
