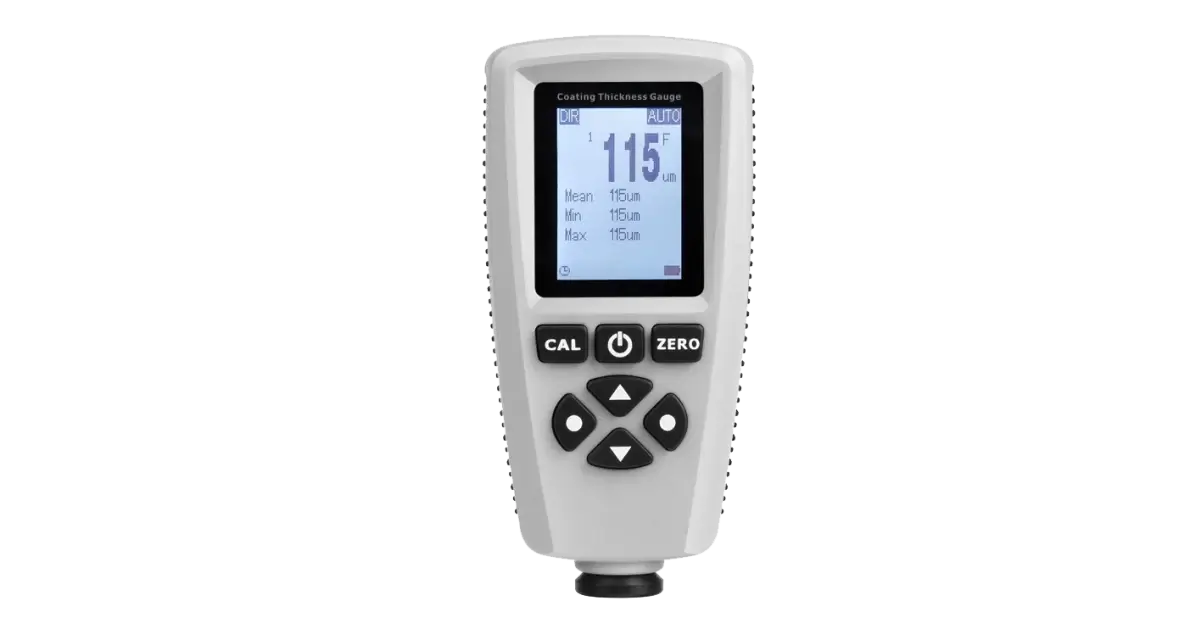

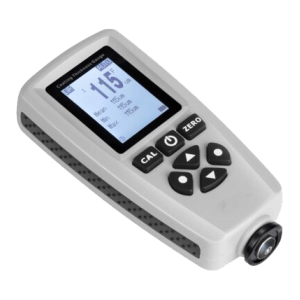

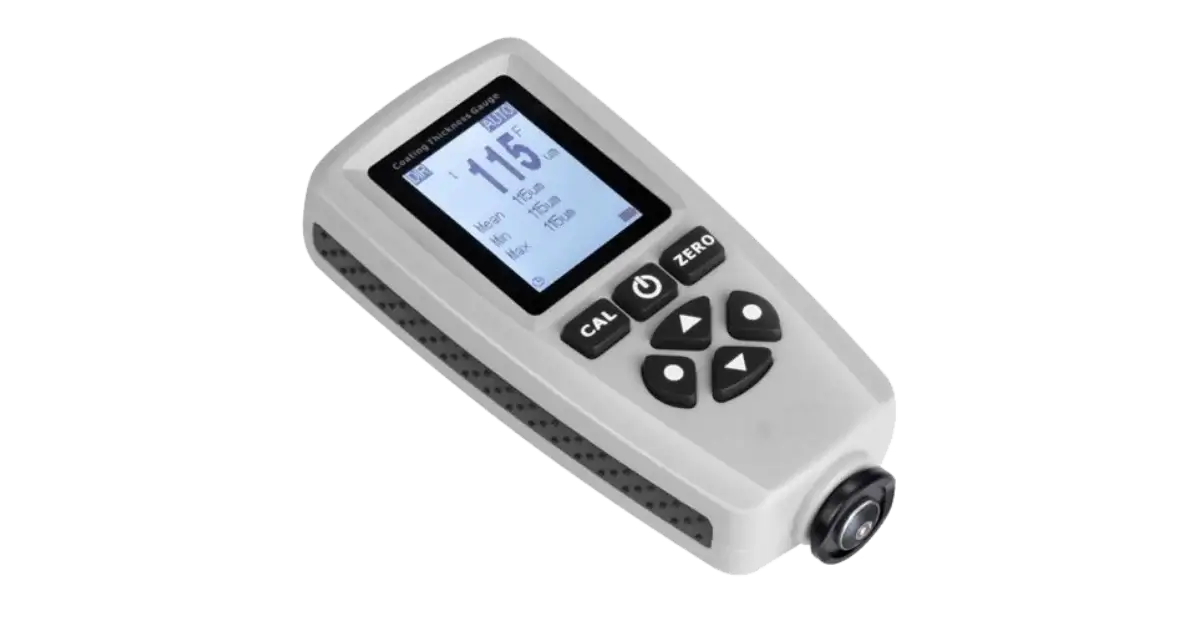

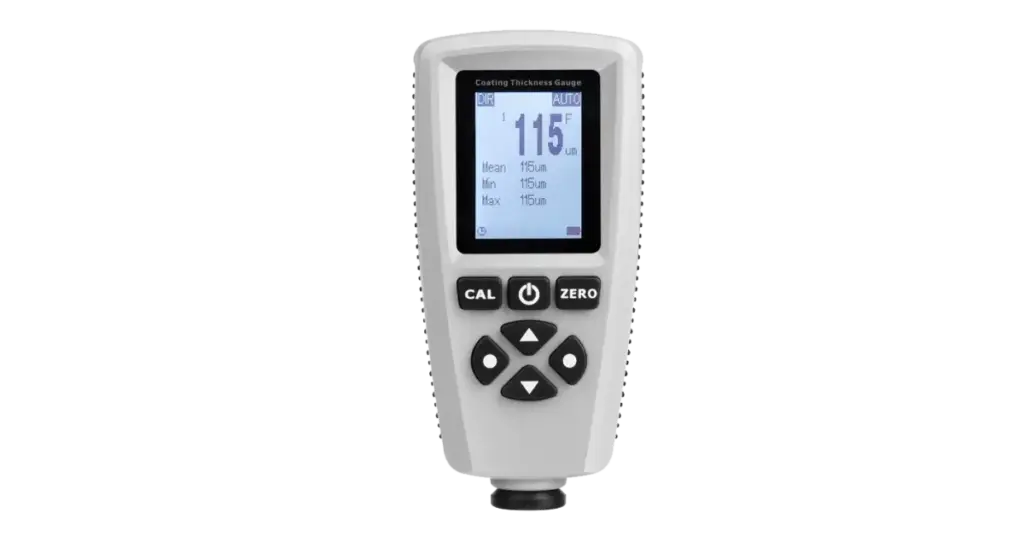

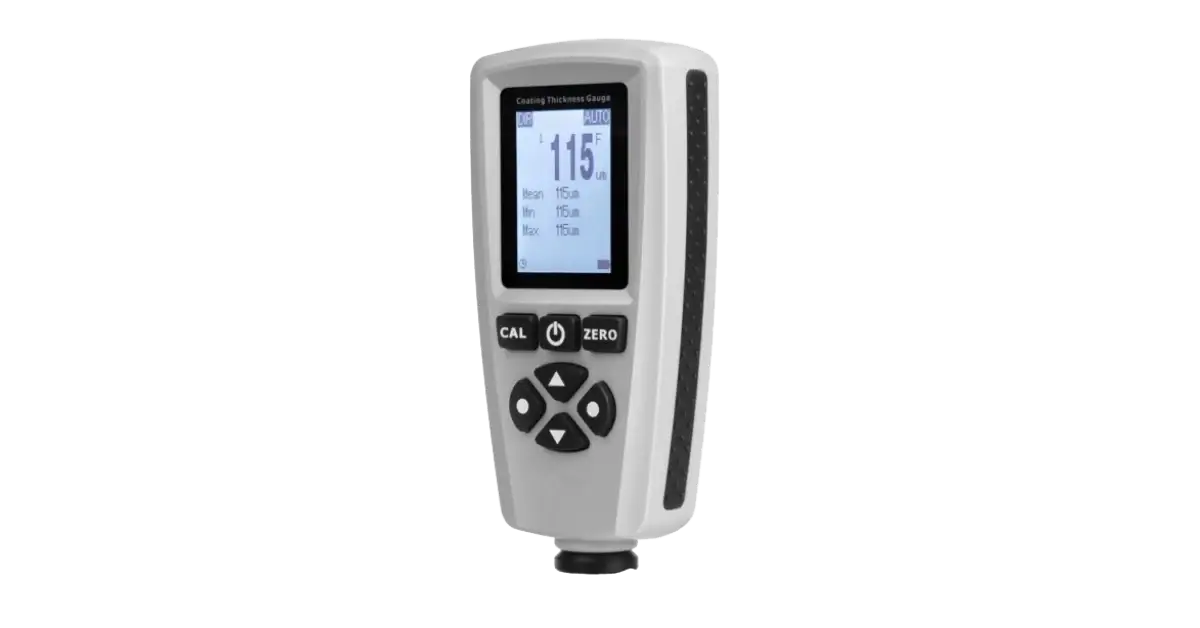

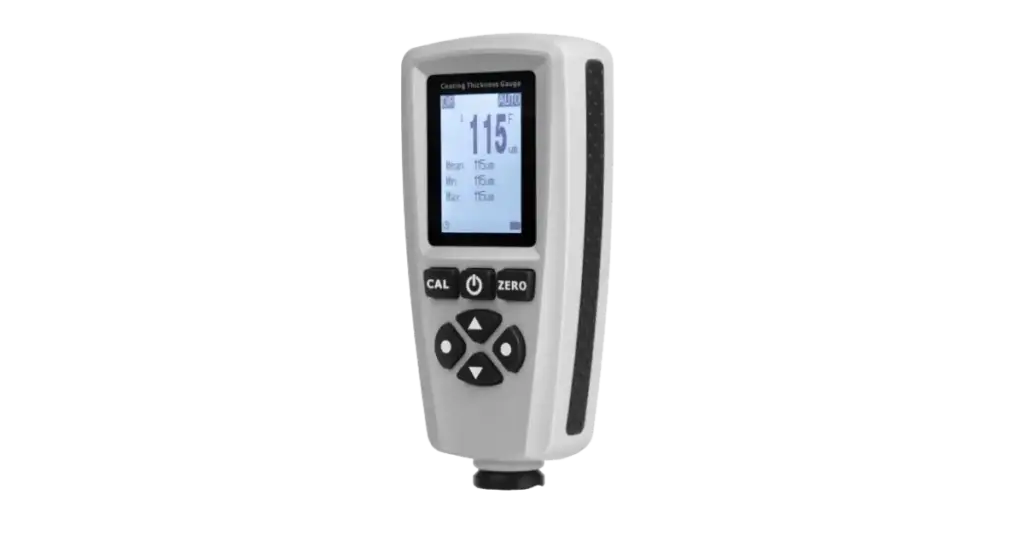

EC770P Coating Thickness Gauge

The EC770P is a high-performance coating thickness gauge engineered for precise, non-destructive measurement of coatings on ferrous and non-ferrous substrates. Designed with advanced features and a rugged build, it delivers reliable results for inspection, quality assurance, and maintenance across demanding industrial environments

Why Choose EC770P Coating Thickness Gauge from ADYAA?

Capability

Handles complex coating measurements with precision and ease

Reliable

Designed to deliver consistent results, even in high-demand environments

Efficiency

Cuts down setup time with intuitive controls and fast calibration.

Performance

Internal statistics and memory turn measurements into actionable insights.

Technical Specifications

- Measurement Principle: Magnetic induction (Fe) and eddy current (Non-Fe)
- Substrate Compatibility: Ferrous (F) and non-ferrous (N) metals
- Measurement Range: 0 – 2000 μm
- Accuracy: ±(2.5% of reading + 1 μm)
- Resolution: 0.1 μm (0–99.9 μm), 1 μm (100–2000 μm)
- Display: Rotatable high-contrast LCD with statistical readouts
- Calibration: Zero and multi-point calibration with foil standards
- Operating Temperature: -20 °C to +60 °C
- Storage Temperature: -20 °C to +60 °C
- Power Supply: 2 × AAA batteries (1.5V)
- Dimensions / Weight: 114 × 53 × 25 mm / approx. 80 g
- Memory Capacity: Stores up to 320 readings
- Certifications: CE, ROHS, ISO 2178, ISO 2360, GB/T 4956-2003, GB/T 4957-2003

Key Features

Dual-mode operation for ferrous and non-ferrous substrates
Automatic substrate recognition (F/N)
Easy zero and multi-point calibration for enhanced accuracy
Rotatable LCD with mean, max, min, and standard deviation display
High resolution for thin coatings and extended range for industrial use
Memory function to store, recall, and delete readings
Lightweight, ergonomic design with durable ABS casing
Multi-language support and USB connectivity for data export
Quick, stable measurements with minimal user training required

Industrial Applications

Automotive Industry – Paint thickness inspection on vehicle bodies and parts
Aerospace – Coating verification on aircraft components for safety and performance
Shipbuilding & Marine – Measurement of anti-corrosion coatings on hulls and marine structures
Metal Fabrication – Quality control of painted, plated, or anodized metal surfaces
Construction & Infrastructure – Coating checks on bridges, pipelines, and steel frameworks
General Manufacturing – Routine inspection of coatings in production and maintenance workflows
