Rupture Discs for Process Safety | Zero‑Leak, Maintenance‑Free Design

A rupture disc is a pressure relief device that bursts at a set pressure to release excess pressure and protect equipment. It has no moving parts, provides a fast and leak-tight response, and must be replaced after activation. Commonly used in chemical, oil & gas, and power industries for safe pressure control.

Why Choose Rupture Discs from ADYAA?

Instant Response

Rupture discs provide immediate pressure relief with no delay, as they burst the moment the set pressure is reached, ensuring rapid system protection.

Zero Leakage Design

Being a solid, sealed membrane, rupture discs offer 100% leak-tight sealing before activation — ideal for toxic, flammable, or high-purity applications.

Compact & Lightweight

They have a simple, space-saving design, making them easy to install in tight spaces and integrate with existing systems or relief valves.

Cost-Effective Safety Solution

Compared to safety valves, rupture discs are economical while still providing high reliability and protection for critical equipment.

Compatibility & Integration

Can be used alone or in combination with safety valves, enhancing protection and extending valve life by preventing corrosion and leakage.

High‑Integrity Rupture Discs | Burst Protection for Critical Systems

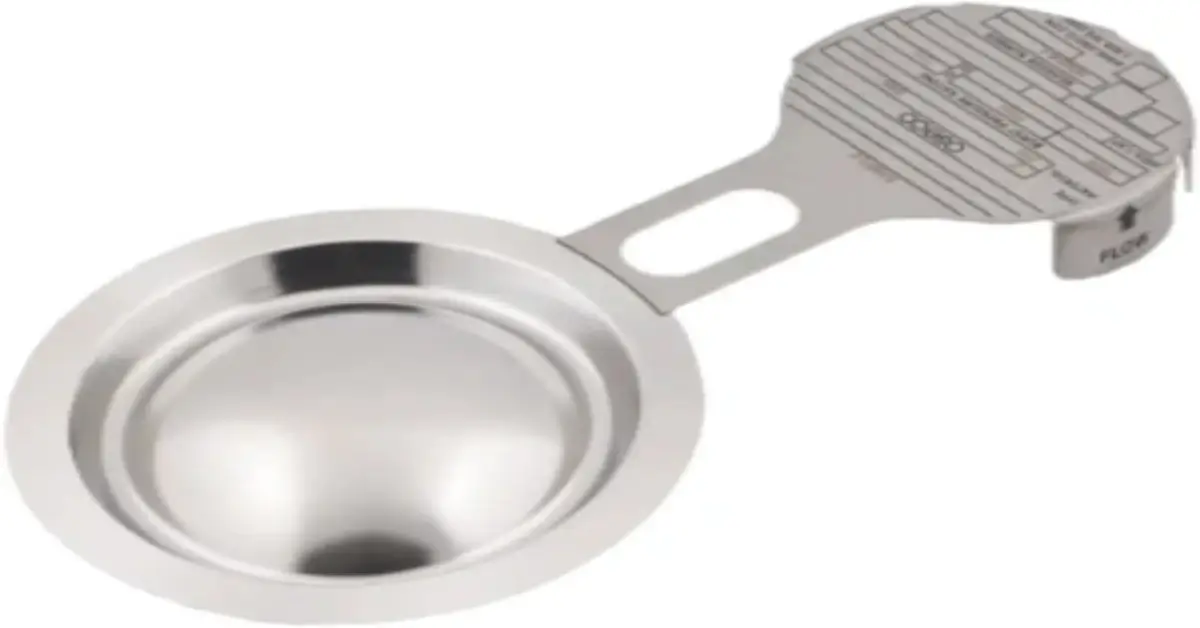

Forward Acting Rupture Disc

Size Range: ½” to 24” (DN15 to DN600), suitable for a wide range of pressure relief installations.
Burst Pressure Range: 0.3 bar to 700 bar, factory-calibrated for precise and reliable operation.
Operating Temperature: –196°C to +400°C, depending on disc material and process conditions.
Material Options: Stainless Steel, Nickel, Inconel, Monel, or Graphite for compatibility with various media.
Design: Dome-shaped metal membrane designed to burst forward under overpressure, providing instant full opening.
Standards & Compliance: Manufactured in accordance with ASME Section VIII, PED 2014/68/EU, and ISO 4126-2 standards for safety and performance.

Metal Rupture Disc

Size Range: ½” to 24” (DN15 to DN600) for compatibility with standard process connections.
Burst Pressure Range: 0.5 bar to 1000 bar, precisely engineered for accurate and repeatable burst performance.
Temperature Range: –196°C to +500°C, suitable for extreme temperature and pressure environments.
Material Options: Stainless Steel, Inconel, Monel, Nickel, or Hastelloy for excellent corrosion and fatigue resistance.
Design Type: Solid metal, forward or reverse acting configuration, ensuring quick and complete pressure relief without fragmentation.
Compliance: Meets ASME Section VIII, PED 2014/68/EU, and ISO 4126-2 standards for safe and reliable overpressure protection.

Domed Rupture Disc

Size Range: ½” to 24” (DN15 to DN600) suitable for standard flange and threaded connections.
Burst Pressure Range: 0.3 bar to 800 bar, factory-calibrated for precise and reliable pressure relief.
Temperature Range: –196°C to +480°C, adaptable for gas, liquid, and vapor applications.
Material Options: Stainless Steel, Inconel, Nickel, Monel, or Hastelloy for superior strength and corrosion resistance.
Design: Forward-acting domed disc construction ensuring rapid, full-bore opening upon overpressure without fragmentation.
Standards & Certification: Complies with ASME Section VIII, PED 2014/68/EU, and ISO 4126-2, ensuring consistent safety and performance.

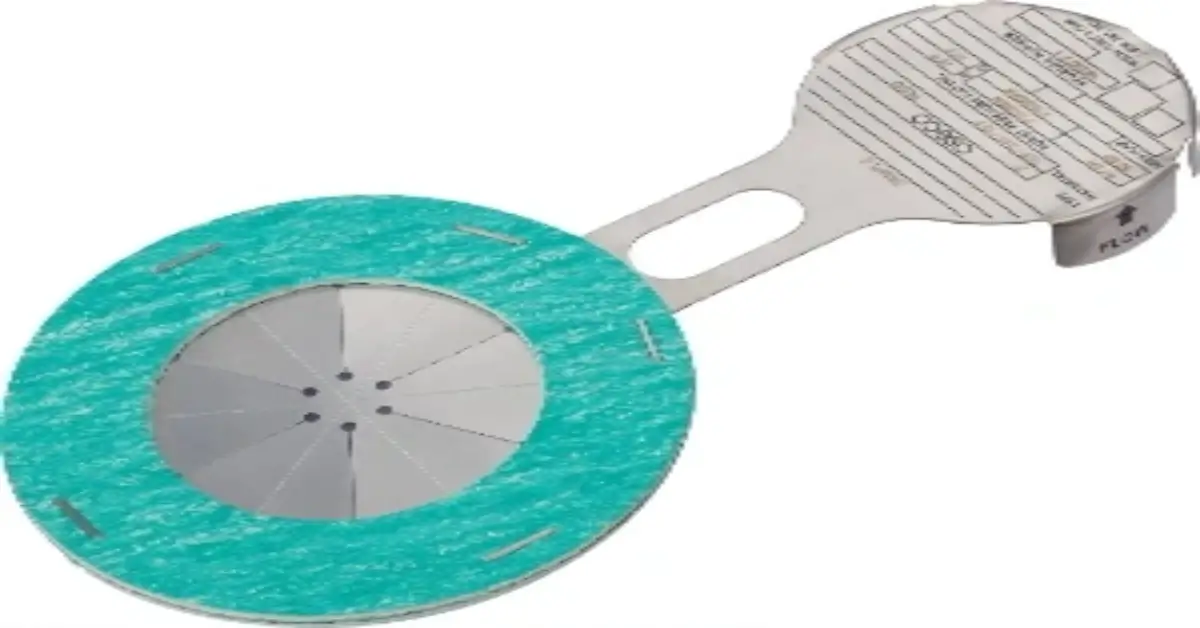

Flat Rupture Disc

Size Range: ½” to 24” (DN15 to DN600), compatible with standard holder assemblies and piping systems.
Burst Pressure Range: 0.5 bar to 600 bar, factory set for accurate and repeatable pressure relief.
Temperature Range: –60°C to +400°C, suitable for gas, liquid, and steam applications.
Material Options: Stainless Steel, Nickel, Inconel, Monel, or Graphite for broad chemical and temperature compatibility.
Design: Flat, solid metal membrane designed to rupture cleanly under overpressure; simple, cost-effective, and maintenance-free.
Standards & Compliance: Manufactured in accordance with ASME Section VIII, PED 2014/68/EU, and ISO 4126-2 for proven safety and reliability.

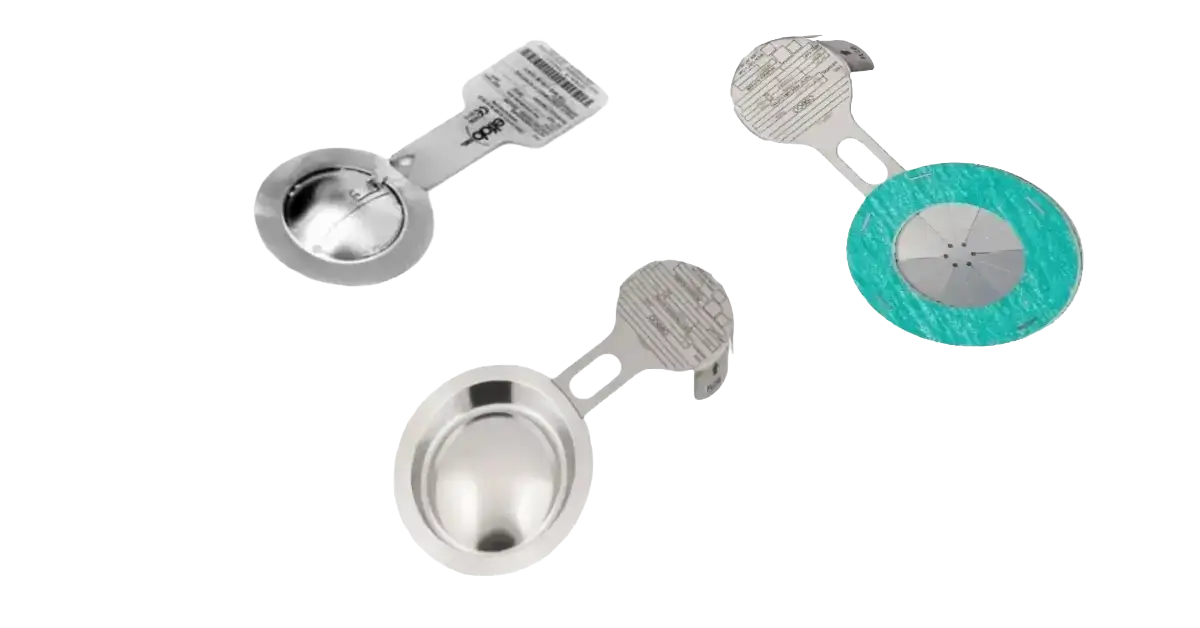

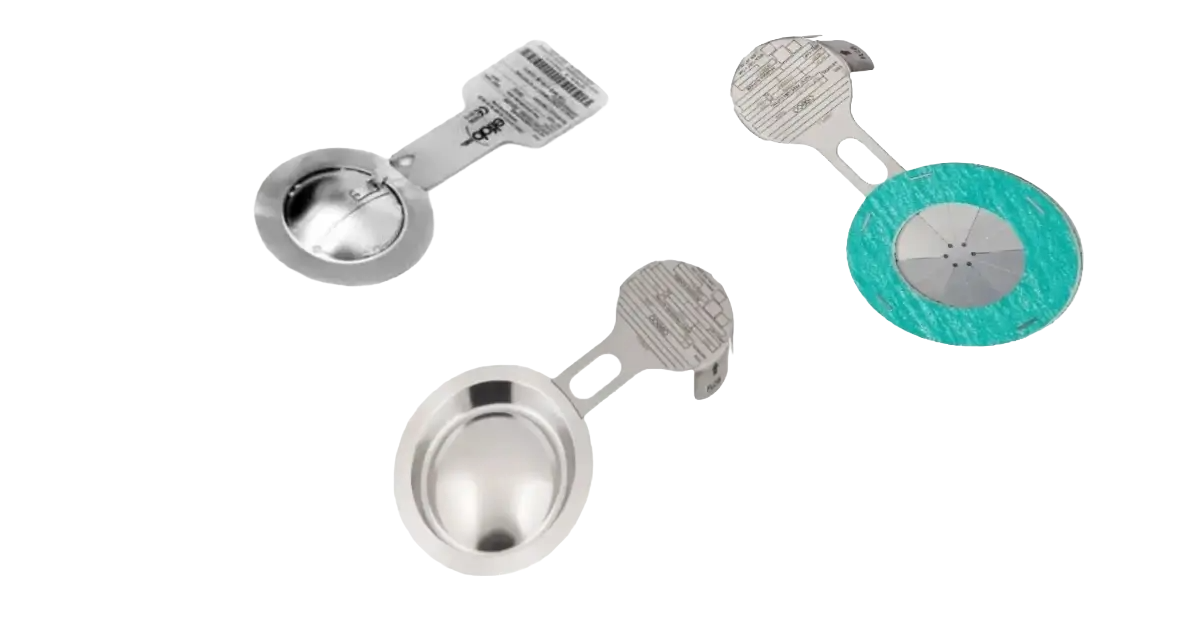

Key Features

Instant Response – Bursts precisely at the set pressure for rapid protection.
Leak-Tight Design – Provides a hermetic seal until activation.
Maintenance-Free Operation – No moving parts, ensuring reliability and low upkeep.
Corrosion-Resistant Materials – Available in stainless steel, nickel, and specialized alloys.
Wide Range of Burst Pressures – Customizable for low to high-pressure systems.
Compact & Lightweight – Easy to install in new or existing safety systems.
Suitable for Harsh Environments – Performs effectively under extreme temperatures and pressures.
Compatible with Safety Valves – Can be used in combination for dual overpressure protection.

Industrial Applications:

Oil & Gas: Pressure protection for separators, storage tanks, and pipelines.
Chemical & Petrochemical: Safety relief for reactors, process vessels, and distillation systems.
Pharmaceutical & Biotech: Ensures contamination-free protection in hygienic environments.
Food & Beverage: Maintains product purity while preventing pressure build-up in process lines.
Power & Energy: Protects boilers, turbines, and steam systems.
Cryogenic Systems: Provides fast relief for low-temperature gas storage and transfer units.
