Thermocouple

Our high-performance thermocouple offers fast temperature measurement for industrial, process, and machinery applications. Engineered for durability and precision, they deliver stable performance even under extreme conditions.

Why Choose Thermocouple from ADYAA?

Wide Temperature Range :

Measures accurately from –200°C to +1,800°C, suitable for diverse industrial processes and high-temperature applications.

Rugged Construction :

Built with robust materials such as stainless steel, Inconel, or ceramic to withstand vibration, pressure, and thermal stress.

Versatile Designs:

Available in multiple configurations – standard, mineral-insulated, flanged, threaded, tri-clover (tri –clamp) and flexible types to suit every installation.

Compatibility & Safety:

Supports integration with transmitters and control systems; available in explosion-proof and weatherproof models complying with ATEX and IECEx standards.

Fast Response:

Ensures quick and accurate readings, ideal for dynamic temperature monitoring and control.

Thermocouple

Measure temperature with speed and accuracy using our advanced thermocouple sensors—designed for industrial, process, and high-temperature applications, offering fast response, durability, and reliable performance even in harsh environments.

TC10-0

Measurement range: -40 to +1,260 °C (-40 to +2,300 °F).
Compatible with all standard thermowell designs.
Replaceable, spring-loaded measuring insert.
Available in explosion-proof versions.
Fixed (welded) measuring insert option.

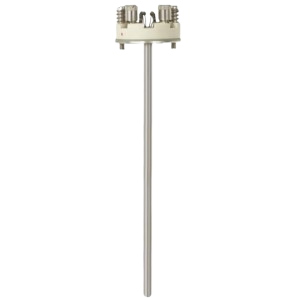

TC10-A

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F).
Constructed with mineral-insulated sheathed measuring cable.
SIL-compliant when used with T32 temperature transmitter.
Spring-loaded design for reliable operation.
Explosion-proof versions available for multiple approval types.

TC10-B

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F).
Features an integrated fabricated protection tube.
Replaceable, spring-loaded measuring insert.
Explosion-proof versions available for various approvals.
Ideal for industrial, process, power, and HVAC applications.

TC10-C

Durable thermocouple with stainless-steel construction.
Measures temperatures from −50°C to 600°C with high accuracy.
Fast response for precise temperature monitoring.
Can be directly inserted; no thermowell required.
Ideal for industrial processes and machinery applications.

TC10-D

Measurement range: -40 to +600 °C (-40 to +1,112 °F).
Compact, space-saving design.
Suitable for a wide range of applications.
Can be installed directly into the process.
Explosion-proof versions available with multiple certifications.

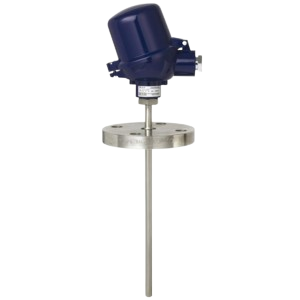

TC10-F

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F).
Equipped with an integrated fabricated protection tube.
Replaceable, spring-loaded measuring insert.
Explosion-proof versions available for multiple approvals.

TC10-H

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F).
Insert-type, screw-in design with optional process connection.
Connection head: Form B or JS.
Explosion-proof versions available for various approvals.

TC10-L

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F).
Replaceable measuring insert.
Compatible with a wide range of thermowell designs.

TC12-A

Measurement range: -40 to +1,200 °C (-40 to +2,192 °F).
Spring-loaded, replaceable measuring insert.
Fits various standard thermowell designs.

TC12-B

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F).
Compatible with various temperature transmitters, including field transmitters
Suitable for installation in all standard thermowell designs.
Replaceable, spring-loaded measuring insert.
Explosion-proof versions available.

TC40

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F)
Insert-type, screw-in design with optional process connection.
Cable options: PVC, silicone, PTFE, or glass fiber.
High mechanical durability.
Explosion-proof versions available.

TC46

Prevents potential faults during installation and operation in hot runner systems with plastic-encapsulated transition.
Can be installed without fixing by bending or shaping the sheathed cable, or with a rotatable (and optionally spring-loaded) union screw.
Probe diameter: 0.5 to 3.0 mm (0.020 to 0.118 in).
Connection cables use Kapton®, the industry-standard insulating material.

TC47-AB

Reliable thermocouple for industrial and power applications with robust construction.Temperature range: up to 400 °C (752 °F).
Adjustable insertion length and contact pressure via sliding bayonet cap.

Thermocouple cable with glass-fiber insulation and stainless steel braid.

Type J or K per IEC 60584 / ASTM E230.

Tubular tip construction.

TC50

Temperature range: -40 to +1,200 °C (-40 to +2,192 °F).
Easily replaceable, no thermowell required.
Suitable for screw-fitting, welding, or strap mounting.
Cable options: PVC, silicone, PTFE, or glass fiber.
Explosion-proof versions available.

TC53

Temperature range: up to 1,200 °C (2,193 °F).
Available in single or dual thermocouple configurations.
Efficient heat transfer via adjustable spring-loading.
Tool-free installation and removal.
Explosion-proof version available.

TC80

Temperature range: up to 1,600 °C (2,912 °F) per DIN EN 50446.
Thermowell is constructed from heat-resistant steel or ceramic.
Support tube made of carbon steel.
Gas-tight process connection.
Optional protective coating available.

TC81

Temperature range: up to +1,200 °C (+2,192 °F).
Protection tube made of heat-resistant steel.
Replaceable measuring insert.
.Optional gas-tight process connection

Key Features

Wide temperature range: –200°C to +1,800°C depending on type (J, K, T, N, S, R, B).
Fast response time for dynamic temperature changes.
High mechanical strength and vibration resistance.
Rugged construction using stainless steel, Inconel, or ceramic protection tubes.
Various designs: mineral-insulated, flanged, threaded, tri-clover (tri –clamp) and flexible types.
Interchangeable measuring inserts for easy maintenance.
Explosion-proof and weatherproof options available.
Compatible with transmitters, controllers, and automation systems.
