RTD (Resistance Temperature Detector) Sensors

Our advanced RTD (Resistance Temperature Detector) Sensors provide high-accuracy temperature measurement for industrial, hygienic, and process applications. Designed for reliability, durability, and flexibility, they ensure precise monitoring in even the most demanding environments.

Why Choose RTD (Resistance Temperature Detector) Sensors from ADYAA?

Accuracy:

Delivers precise temperature measurement from –196°C to +600°C, ensuring dependable performance across industries.

Durability:

Constructed from high-grade stainless steel for long-lasting reliability in harsh environments.

Versatility:

Available in multiple configurations – flanged, threaded, sanitary, and cable versions for every application.

Smart Connectivity:

Supports 4–20 mA, HART, and IO-Link for seamless integration with modern automation systems.

Safety & Compliance:

Certified to ATEX, IECEx, and CSA standards for use in hazardous and critical environments.

Our RTD (Resistance Temperature Detector) Sensors

Monitor temperature with precision and reliability using our advanced RTD sensors—ensuring accurate readings for industrial, sanitary, and environmental applications with long-term stability and durability.

CombiTemp TFRN

Configurable to meet specific user requirements.
Optional touch display available.
Immersion depth range: 20 to 3000 mm.
Output options: 4–20 mA, HART, or Pt100.
Easy installation with dependable performance.

PT55

Compact and durable design.
Standard immersion depths up to 300 mm.
Custom immersion lengths available on request.
Easy to install and operate.
Suitable for high media temperatures up to 250 °C.
IO-Link Dual Channel enables quick setup and access to valuable secondary data.

PT20S

Very fast response time.
Highly accurate temperature measurement.
Integrated 4 … 20 mA transmitter.
IO-Link Dual Channel for fast commissioning and valuable additional data.
Customer-specific immersion depth.

TE2

Compact and durable design.
Customizable immersion depths up to 3000 mm.
Accurate temperature measurement from -50°C to +250°C.
Available with integrated 4–20 mA transmitter or Pt100 output.

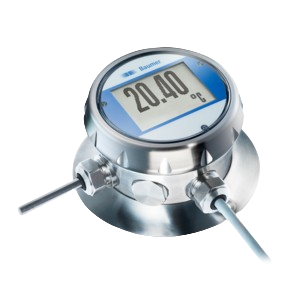

TFR5

Constructed from AISI 316L stainless steel.
Suitable for both indoor and outdoor applications.
Optional integrated display available.
Available in cable or rigid probe versions.
Supports wall or tube mounting options.

8141 Cable Sensor

Compact and lightweight design for flexible installation.
Ideal for confined spaces and moving machinery.
Pt100 output for precise temperature measurement.
Fully compatible with the CombiTemp series.

TRW

Extended battery life through intelligent measurement control.
Seamless integration with multiple radio standard options.
Versatile applications, suitable even for retrofit installations,
Rugged and durable design ensuring long-term, reliable temperature measurement.

TR10-0-Analogue

Wide temperature range from –196 to +600 °C.
Easy installation with or without thermowell.
Available with analogue or digital output.
CSA, FM, IECEx, and ATEX certified for safety.
Spring-loaded RTD ensures accurate and reliable measurement.

TR10-F

Temperature range: –196 to +600 °C (–320 to +1,112 °F).
Integrated fabricated protection tube for durability.
Spring-loaded, replaceable measuring insert.
Explosion-protected versions available with multiple approvals.

TR20

Zero dead space for maximum hygiene.
Flush design with no invasive parts.
Premium materials meeting hygienic standards.
Pharma-compliant surface finishes.
Safe & contamination-free operation.

TR21-B

Calibrate without opening the process.
Fast electrical connection via M12 x 1 plug.
Flexible output options: Pt100/Pt1000 (3- or 4-wire) or 4…20 mA with WIKAsoft-TT PC configuration.
Stainless steel wetted parts (1.4435).
Hygienic design: self-draining, dead-space minimized, compliant surface finish.

TR35

Measuring range: -50 … +200 °C [-58 … +392 °F].
High vibration resistance.
Compact design.
Easy plug-in electrical connection.

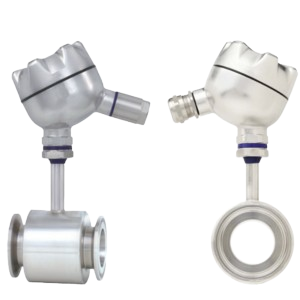

TR25

Hygienic design with dead-space-free transitions.
Quick, residue-free cleaning (piggable, SIP/CIP suitable).
Pharma-compliant materials and surface finishes.
High accuracy with fast response times.
Available in explosion-protected versions.

TR40

Temperature range: -196 … +600 °C [-320 … +1,112 °F].
Flexible mounting insertion or screw-in with optional process connection.
Variety of cable materials PTFE, PFA, silicone, and more.
Connector options, with or without connection housing
Explosion-protected versions available for multiple approvals.

TR50

Temperature range up to 250 °C (option: 600 °C).
Easily replaceable, no thermowell needed.
Flexible mounting: screw, weld, or tightening strap.
Cable options: PVC, silicone, or PTFE.
Explosion-protected versions available.

TR53

Temperature range up to 400 °C (752 °F).
Single & dual resistance thermometers.
Efficient heat transfer via adjustable spring-loading.
Tool-free installation & removal.
Explosion-protected versions available.

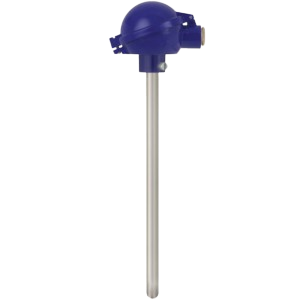

TR81

Application range up to 600 °C (1,112 °F).
Thermowell made from heat-resistant steel.
Replaceable measuring insert.
Optional gas-tight process connection.

TR95

Custom versions to customer specifications.
Various process connections available.
Exchangeable measuring inserts.
Compatible with thermowells.
Explosion-protected: Ex i, Ex n, and NAMUR NE24.

TF-LCD

Waterproof case: IP68.
Battery or solar powered.
Extremely long service life.

TRN

Measuring range: -50 … +600 °C (-58 … +1,112 °F).
Fits standard thermowell/protection tubes.
Spring-loaded measuring insert.
Pt100 measuring resistors.

Key Features

Precise measurement from –196 °C to +600 °C.
From compact transmitters to multipoint thermometers.
Zero dead space, pharma-grade finishes.
Configurable immersion depths (20 – 3000 mm).
4–20 mA, HART, IO-Link, or Pt100/Pt1000.
CSA, FM, IECEx, ATEX approved for safety.

Industrial Applications:

Process Temperature Monitoring: For pipelines, tanks, and reactors in industrial systems.
Sanitary & Hygienic Applications: Ideal for pharmaceutical, biotech, and food processing (CIP/SIP compatible).
Flue Gas & Exhaust Monitoring: Suitable for power plants, furnaces, and engines.
Surface & Equipment Temperature Control: For machinery, motors, and industrial equipment.
Multipoint Temperature Measurement: For reactors, distillation columns, and thermal profiling.
Wireless & Retrofit Installations: Flexible options for upgrading existing systems without wiring.
